Price Breaks

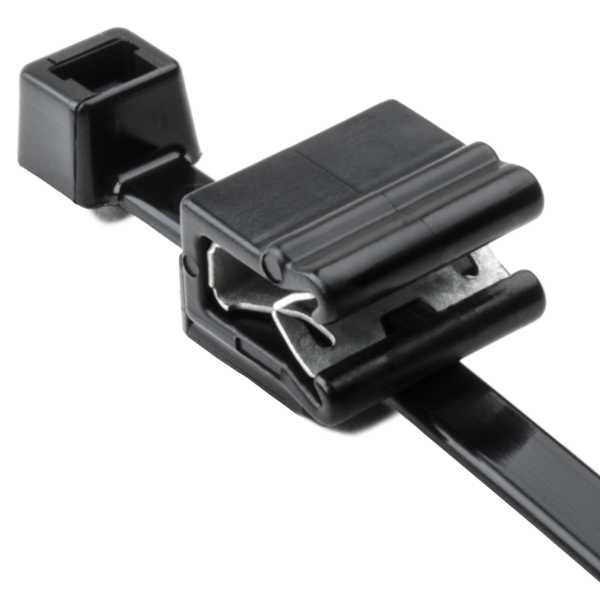

156-00589 CABLE TIE AND EDGE CLIP, 8.0 LONG, EC5A, 1–3 MM PANEL, 50LB, PA66UV, BLACK, 100/BAG
Quantity
Price
156-00589 CABLE TIE AND EDGE CLIP, 8.0 LONG, EC5A, 1–3 MM PANEL, 50LB, PA66UV, BLACK, 100/BAG
Couldn't load pickup availability
Contact us for pricing availability
Available Quantity: 0
Specification
Value
Bundle diameter max imperial
2.0 ""
Bundle diameter max metric
50.8 mm
Bundle diameter min imperial
0.16 ""
Bundle diameter min metric
4.0 mm
Color
Black (BK)
Coo
MX
Height h imperial
0.61 ""
Height h metric
15.5 mm
Hts
3926909987
Length l imperial
8.0 ""
Length l metric
200.0 mm
Material
Polyamide 6.6 UV-stabilized (PA66UV);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating temperature
-40???F to +185???F (-40???C to +85???C);-40???F to +230???F (-40???C to +110???C)
Package quantity imperial
100
Rohs status
Yes
Tensile strength min imperial
50.0 lbs
Tensile strength min metric
225 N
Type
T50REC5A
Unspsc key
39121703
Width w imperial
0.55 ""
Width w metric
14.0 mm

Can't Find Your Product Here?
Contact us today for a quote on pricing and lead times for the electronic parts you need.
